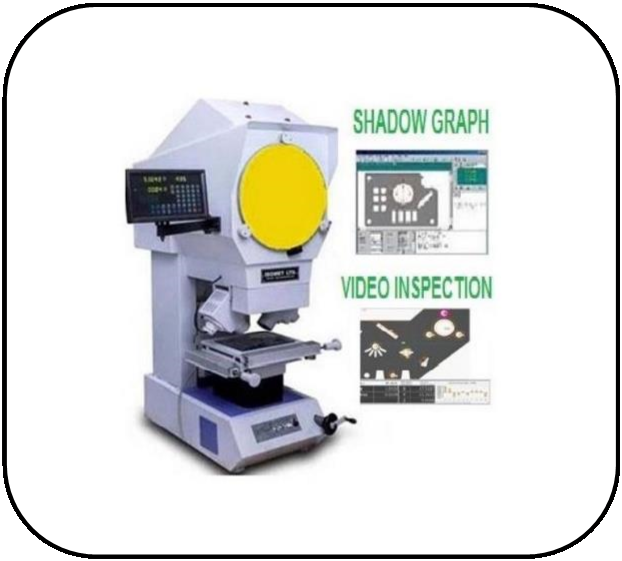

Profile Projector

· High Precision Profile Projector with Video Measuring Attachment

· ISOMET report generating with cad   transfer

· Table Size 500X320

· Accuracy: +/- 3 Micron

· Data Processing Software

· Edge Deduction automatic report

· 2 axis Digital Read Out System counter with RS 232 port & 2 axis Linear scales reading with smart DRO complete scales reading with smart DRO complete.

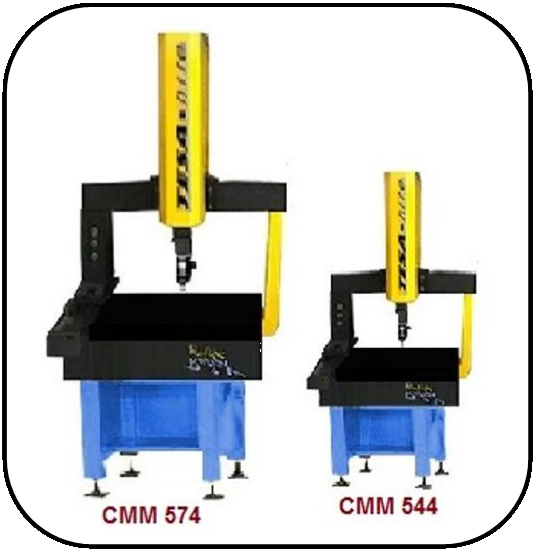

3D Coordinate Measuring Machine

· High Precision 3D Coordinate Measuring Machine

· Available in Different Sizes, Model 343, Model 444 & Model 544

· Resolution: 0.001 mm

· Accuracy: μm   below 3.5 + (L/300)

· Renishaw TP8 Probe Head with Interface

· Add on CNC with Renishaw T3 and PC Dims CNC CMM software    option to suit all machine

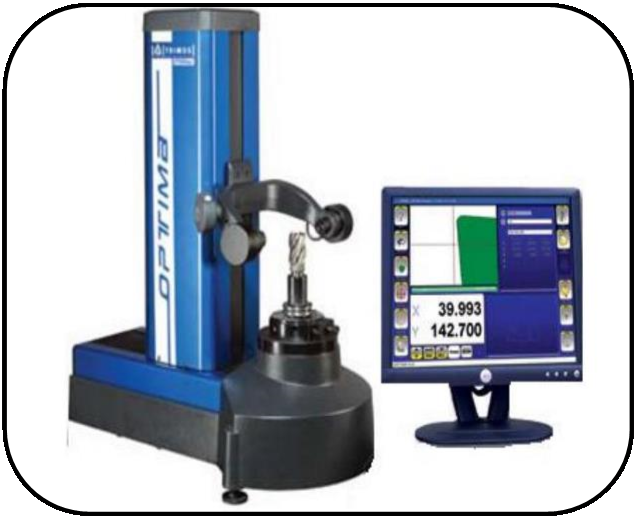

TOOL PRESETTER

· High Precision Tool Presetter

· With Cimos Camera Measuring Capacity 400X300 dia

· Least Count: 0.01 mm

· Electronic system embedded with built in software and CPU

· Accuracy: 3 microns

· Standard holding for BT 50/ BT 40

· Rotation on Precision Bearings

· Locking - Manual

· Ground Area Covered -  960mmx600mmx900mm Height

· Weight -150 kgs.

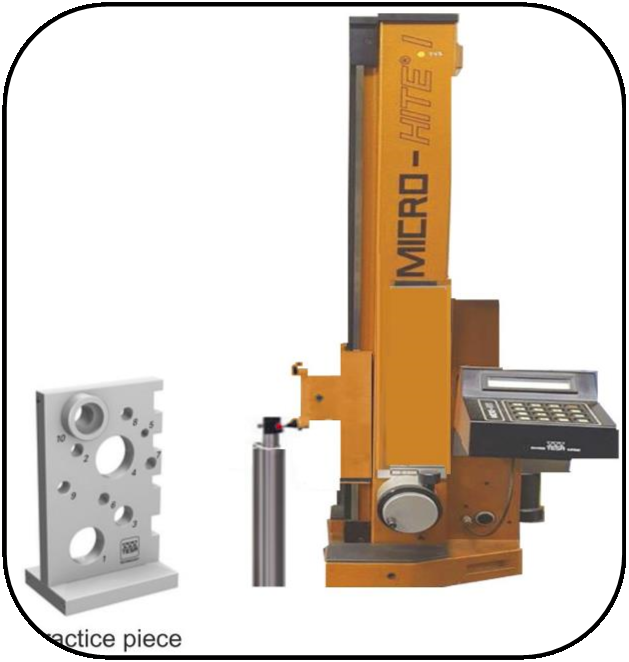

2d height master

· Measuring Specification 600 mm

· Accuracy: +/-um 1.3+(L/250)

· Resolution: 0.005

· Measuring Force: 0.4 N

· Direct Conversion: mm/in

· Motorized Carriage: Optional

· Straightness & Perpendicularity/Squareness

· Gauge Footprint: 310 X 360 mm

· Gauge Height: 860/1060/1410 mm

· Weight: 31/34/37 Kg

· Battery Operational Time: 10 h
